TBS8510-Pro is a real-time multi-channels/format transcoder server, which supports to convert media files from their source format into the best-possible-quality streams to each user’s specific device. It allows to convert streams to any MPEG-4 or H.264/H.265 format, bitrate and resolution.
TBS8510-Pro real-time transcoder is a cost-effective IPTV/OTT headend server, as it supports 30 HD channels or 80 SD channels transcoding, with protocol of UDP, RTP, RTMP, HTTP, HLS, and Media Files.

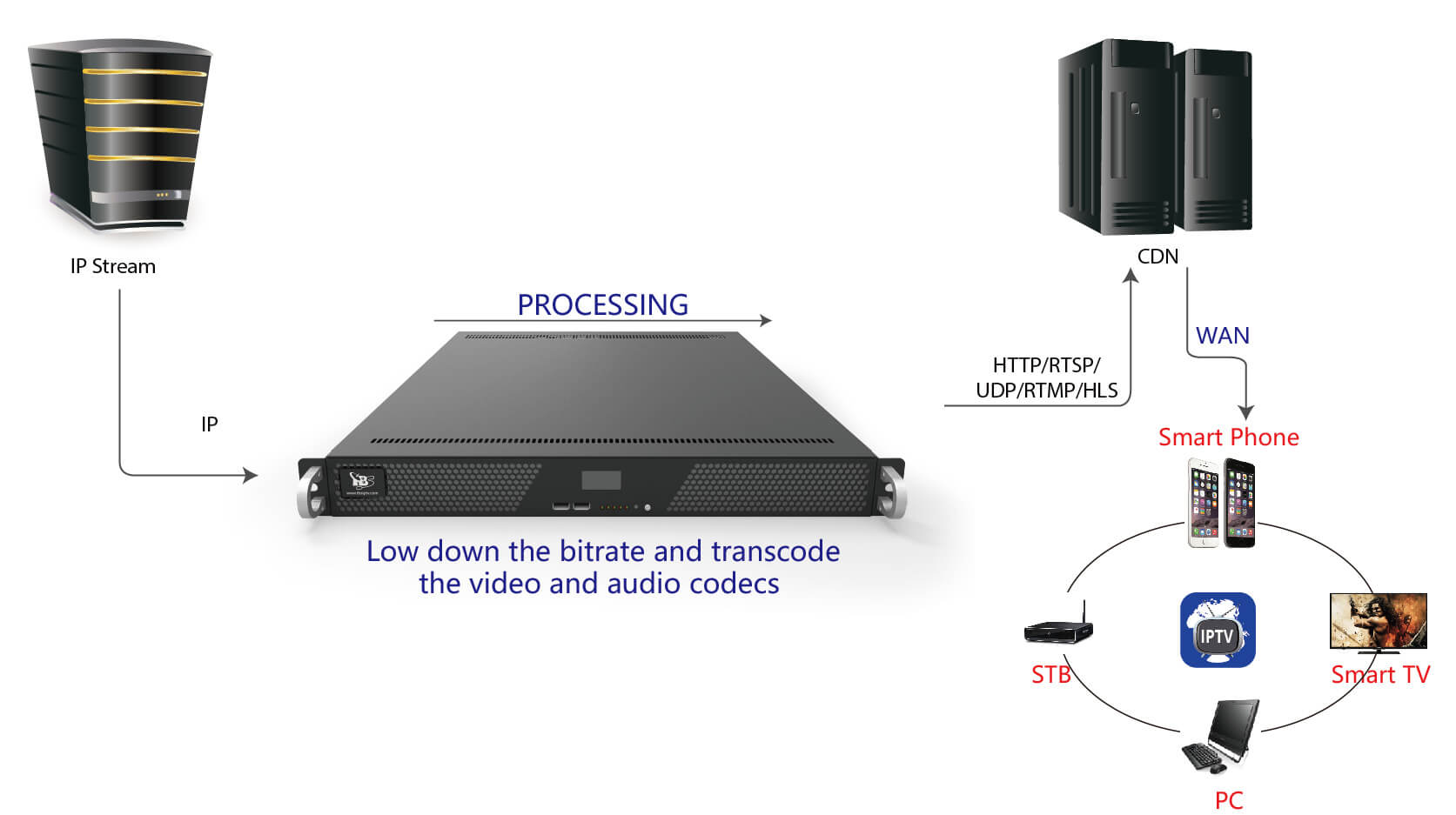

Based on the powerful hardware, TBS8510-Pro real-time transcoder enables to deliver impressive images to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming and so on.
TBS8510-Pro can be easily managed through NMS system and has become an ideal solution for operator to provide high quality video transcoding. It is a real multi-channel/formal transcoding server which answers all market requirements and is thus the suitable solution to Terrestrial, Satellite, Cable, IPTV networks.

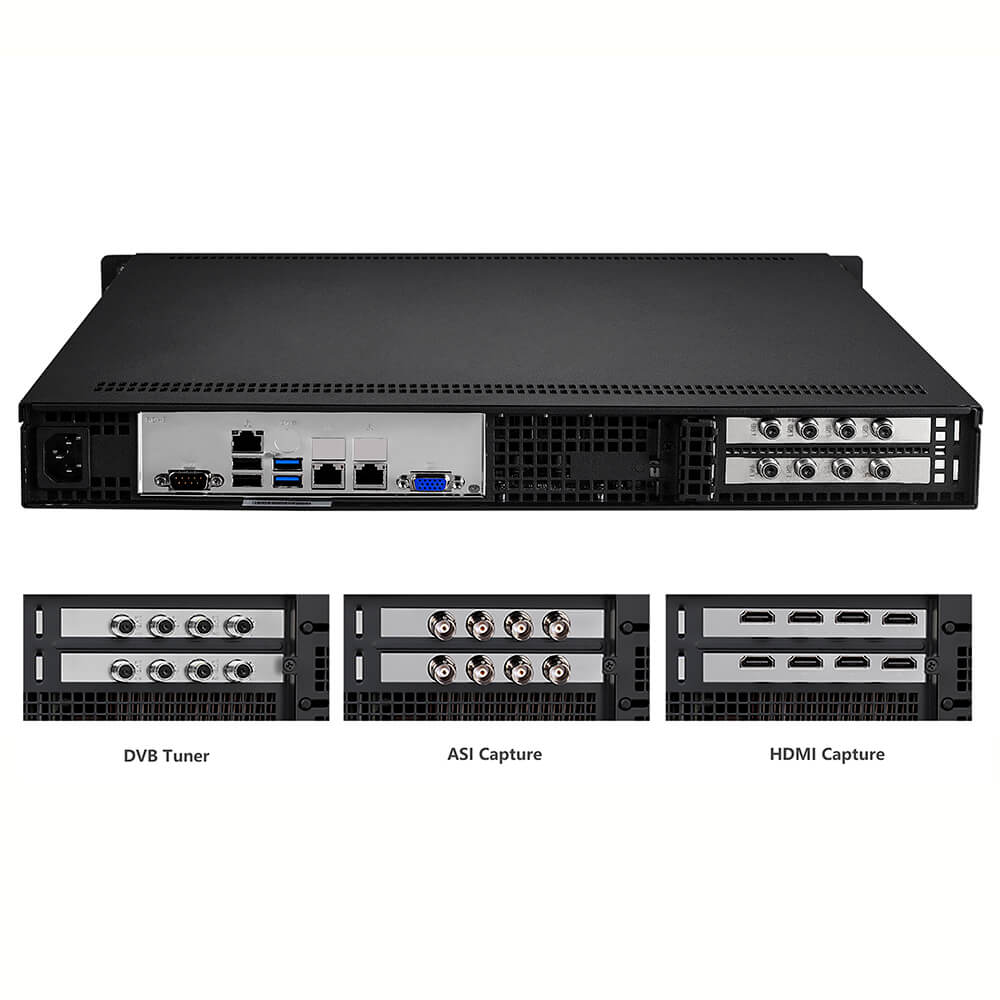

For TBS8510 Pro-Dual GPU version, it does not support embedding DVB tuner cards. If you want to use with DVB tuner card, you can consider to use TBS8520 or TBS8510.
* High performance transcoder supports to convert up to 30 * Full HD or 80 * SD profiles.
* Input available: IP.
* Optimized for 1000Kbps for SD, 1800Kbps for HD 720P, 2500Kbps for HD 1080p.
* Supports HEVC / H.265 transcoding.
* Baseline, main profile and high profile with variable GOP.
* Multiple codec, Protocol, Bitrate Resolution, Profile per channel.
* GbE IP output: UDP, RTMP, Pull/Push HTTP, HTTP, Live Smooth (HLS), FTP M3u8 playlist files.
* Flexible GOP structures with Reference-frame and B-frame edit.
* Frame rate down and up conversion.
* High quality pre-processing including filtering, deinterlacing, cross scaling, image insertion.
* Support variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency.
* Based on embedded Centos 7 Linux.
* DVB Subtitle and Logo insertion.
* Parameter templates settings and imports
* Easy configuration via Web UI
* Designed for secure 24*365 operation
1.OTT IPTV providers (Internet TV)
||2xRJ45, 1000M Base-T2
||DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI
|Input Net Stream
||UDP, RTP, HTTP, HLS, RTSP, Media Files
||MPEG-2, AVC / H.264, HEVC / H.265
||1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480×576, 544×576, 640×576,704×576
||AAC, MP2, MP3, AC-3
||UDP, RTMP, HTTP, HLS(ABR), Media Files
||AVC / H.264, HEVC / H.265
||1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480×576, 544×576, 640×576, 704×576
||up to 80 SD / 30 HD1080 AVC(H.264) streams
up to 60 SD / 28 HD1080 HEVC(H.265) streams
||Less than 200W
